Crankcase and clutch covers
Engine covers with a consistent surface for painting or powder coating.

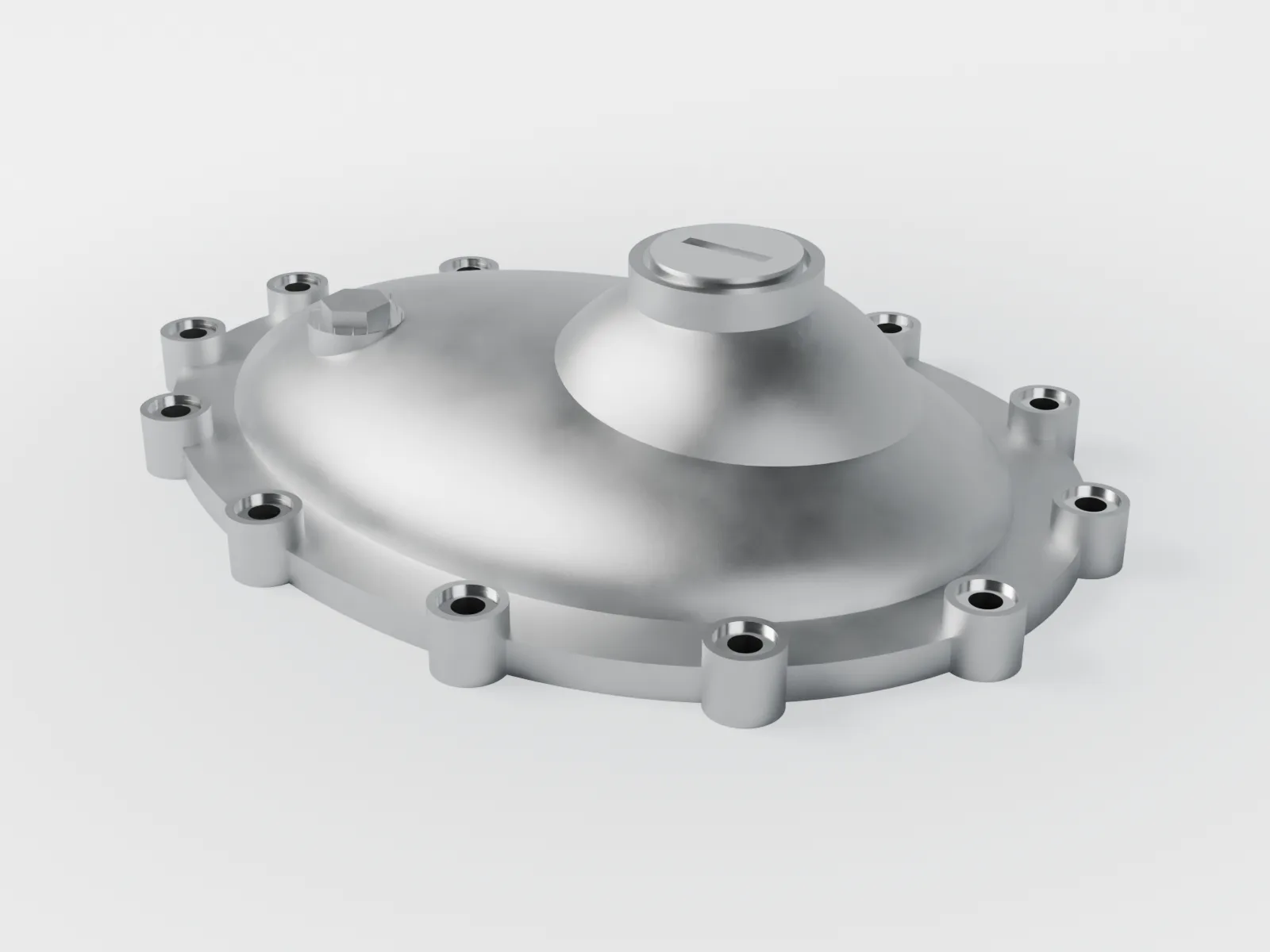

Representative render of this part family. Every part is cast to the customer's own drawing.
| Used in | Motorcycle and scooter engines |
|---|---|
| Process | High-pressure die-casting |
| Alloys | ADC12 |
| Part weight | 0.4–2.5 kg |
| Part size | Up to about 350 × 300 mm |
| Wall thickness | 2.5–4 mm |
| As-cast tolerance | ±0.1 mm (as-cast) |
| Machines | 350 t, 650 t |
| Secondary operations | Trimming and deburring, Shot blasting, Vibro finishing, CNC machining, Powder coating |
Quality documents with every lot
- CMM report
- Spectro (chemical) report
- First piece approval
- PPAP
Send us your drawing
Share a part drawing or 3D model and we will come back with feasibility and a quote.
