Levers and holders
Small high-volume parts such as handlebar holders and brake lever brackets.

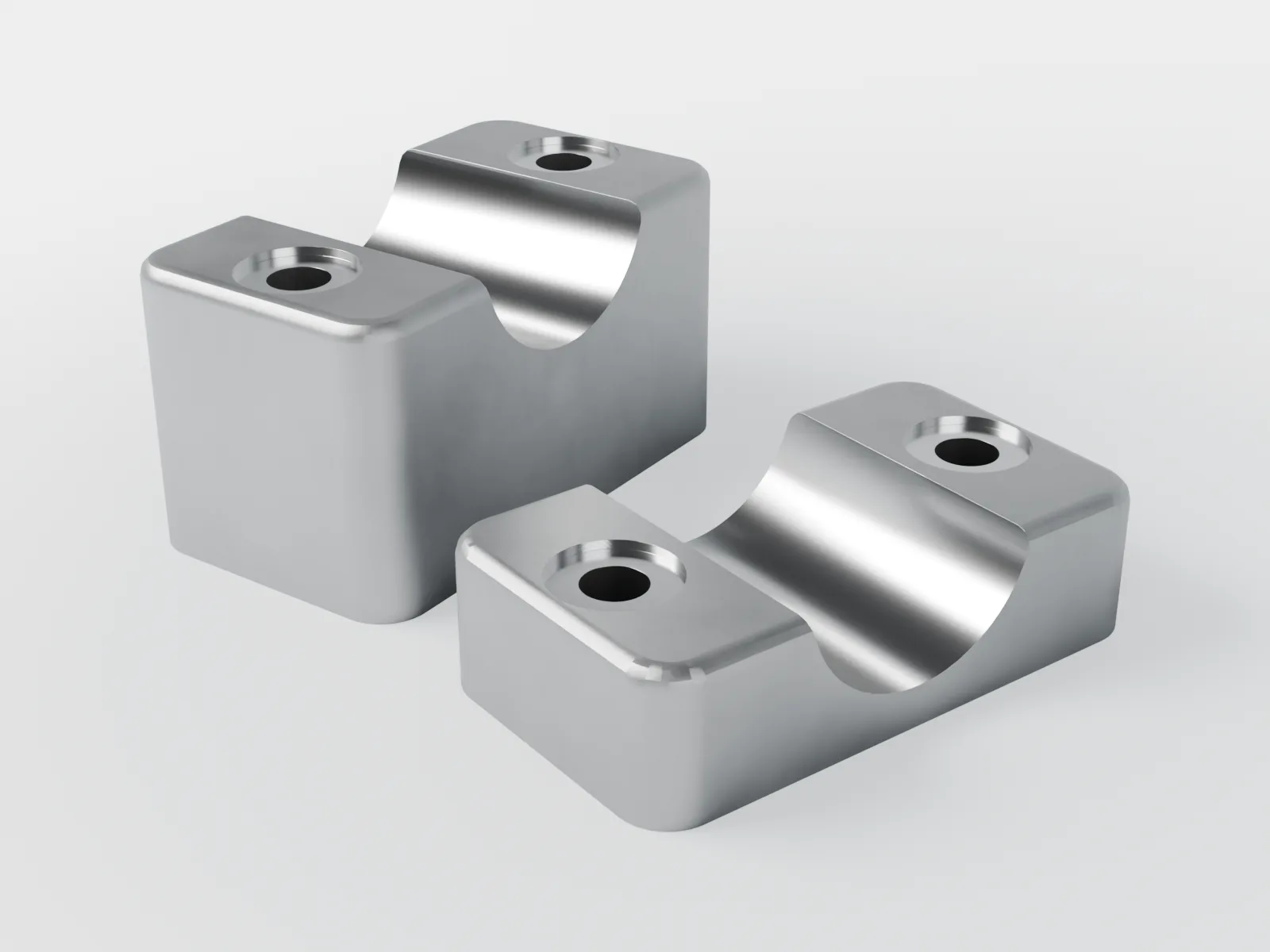

Representative render of this part family. Every part is cast to the customer's own drawing.
| Used in | Handlebar, brake and clutch assemblies |
|---|---|
| Process | High-pressure die-casting |
| Alloys | ADC12, LM6 |
| Part weight | 0.05–0.5 kg |
| Part size | Up to about 150 × 100 mm |
| Wall thickness | 2–4 mm |
| As-cast tolerance | ±0.05–0.1 mm (as-cast) |
| Machines | 250 t |
| Secondary operations | Trimming and deburring, Vibro finishing, CNC machining, Powder coating |
Quality documents with every lot
- CMM report
- Spectro (chemical) report
- First piece approval
Send us your drawing
Share a part drawing or 3D model and we will come back with feasibility and a quote.
