Oil pump and filter housings
Pressure-tight housings with cored passages, checked on CMM for bore position.

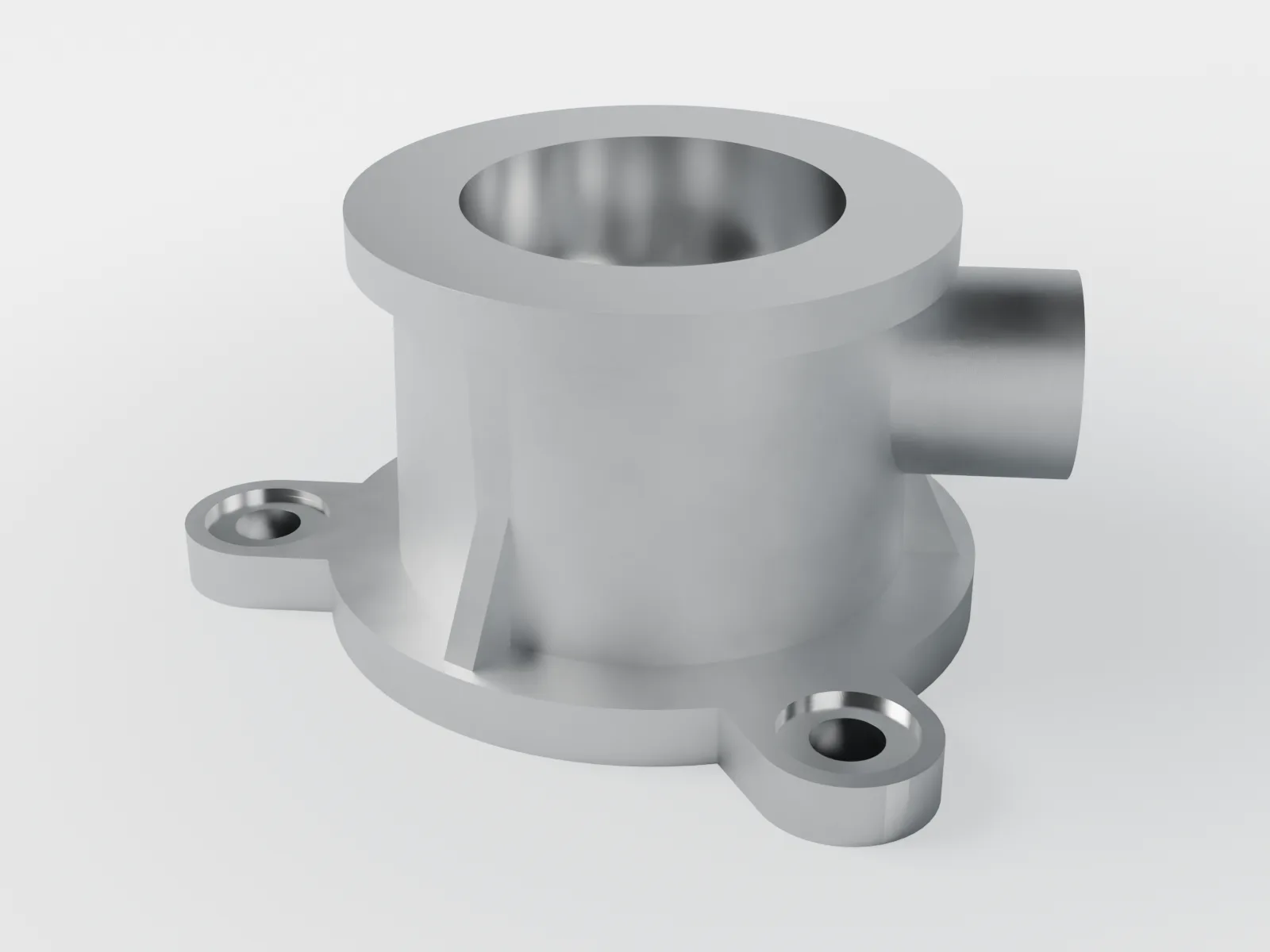

Representative render of this part family. Every part is cast to the customer's own drawing.
| Used in | Engine lubrication systems |
|---|---|
| Process | High-pressure die-casting |
| Alloys | ADC12, A380 |
| Part weight | 0.3–2 kg |
| Part size | Up to about 250 × 200 mm |
| Wall thickness | 2.5–5 mm |
| As-cast tolerance | ±0.1 mm (as-cast), bores machined to drawing |
| Machines | 350 t |
| Secondary operations | Trimming and deburring, CNC machining, Leak / pressure testing, Impregnation |
Quality documents with every lot
- CMM report
- Spectro (chemical) report
- First piece approval
- PPAP
- X-ray / porosity report
Send us your drawing
Share a part drawing or 3D model and we will come back with feasibility and a quote.
