Pump and valve bodies
Bodies and covers for water pumps, valves and compressors.

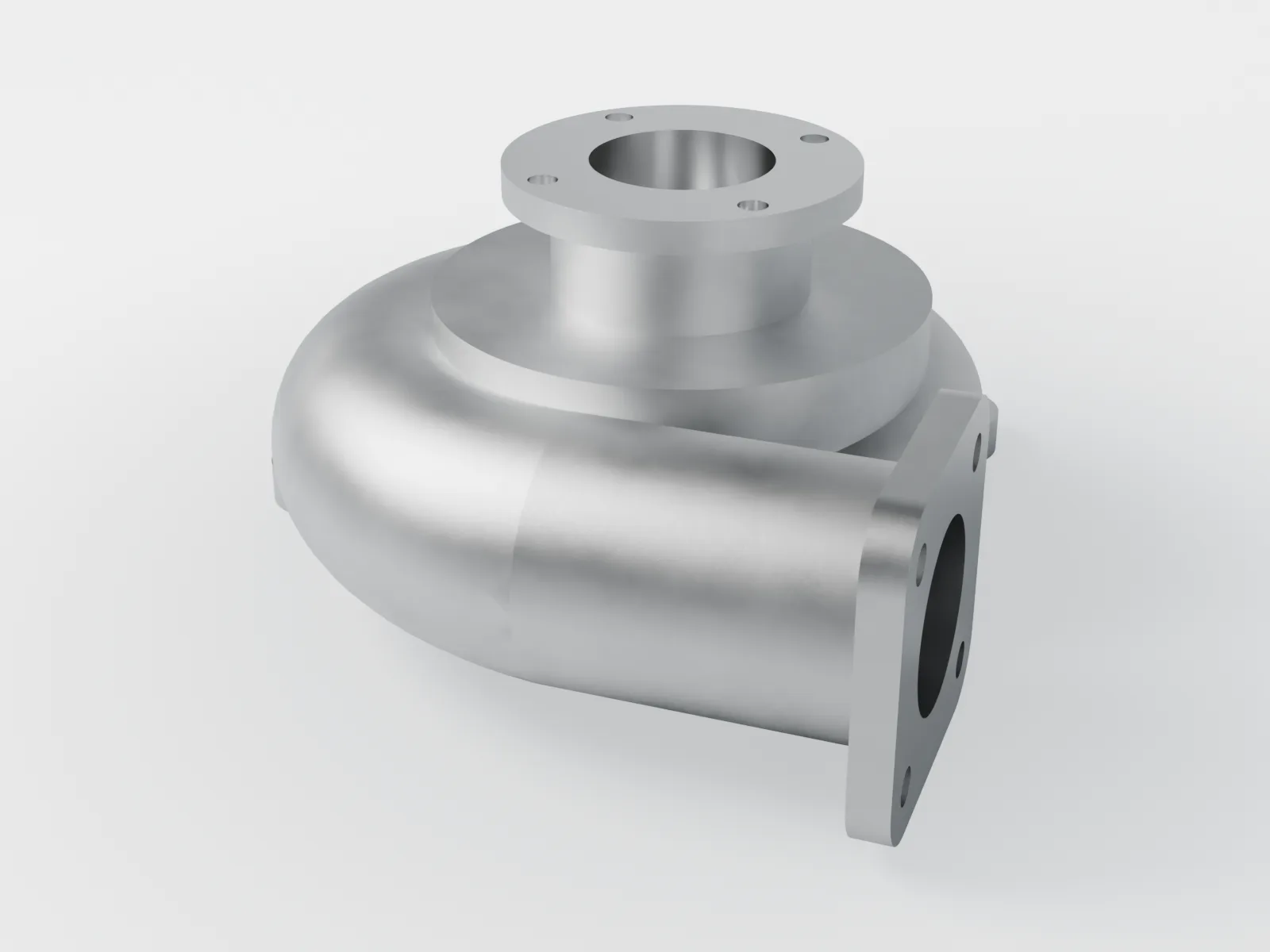

Representative render of this part family. Every part is cast to the customer's own drawing.
| Used in | Water pumps, valves, compressors |
|---|---|
| Process | High-pressure die-casting |
| Alloys | LM6, LM24, ADC12 |
| Part weight | 0.3–4 kg |
| Part size | Up to about 300 × 250 mm |
| Wall thickness | 3–6 mm |
| As-cast tolerance | ±0.1 mm (as-cast), ports machined to drawing |
| Machines | 250 t, 350 t, 650 t |
| Secondary operations | Trimming and deburring, CNC machining, Leak / pressure testing, Impregnation, Painting |
Quality documents with every lot
- CMM report
- Spectro (chemical) report
- First piece approval
Send us your drawing
Share a part drawing or 3D model and we will come back with feasibility and a quote.
