Transmission and gearbox covers
Large thin-wall covers with sealing faces and bosses, cast on our 650 tonne machine.

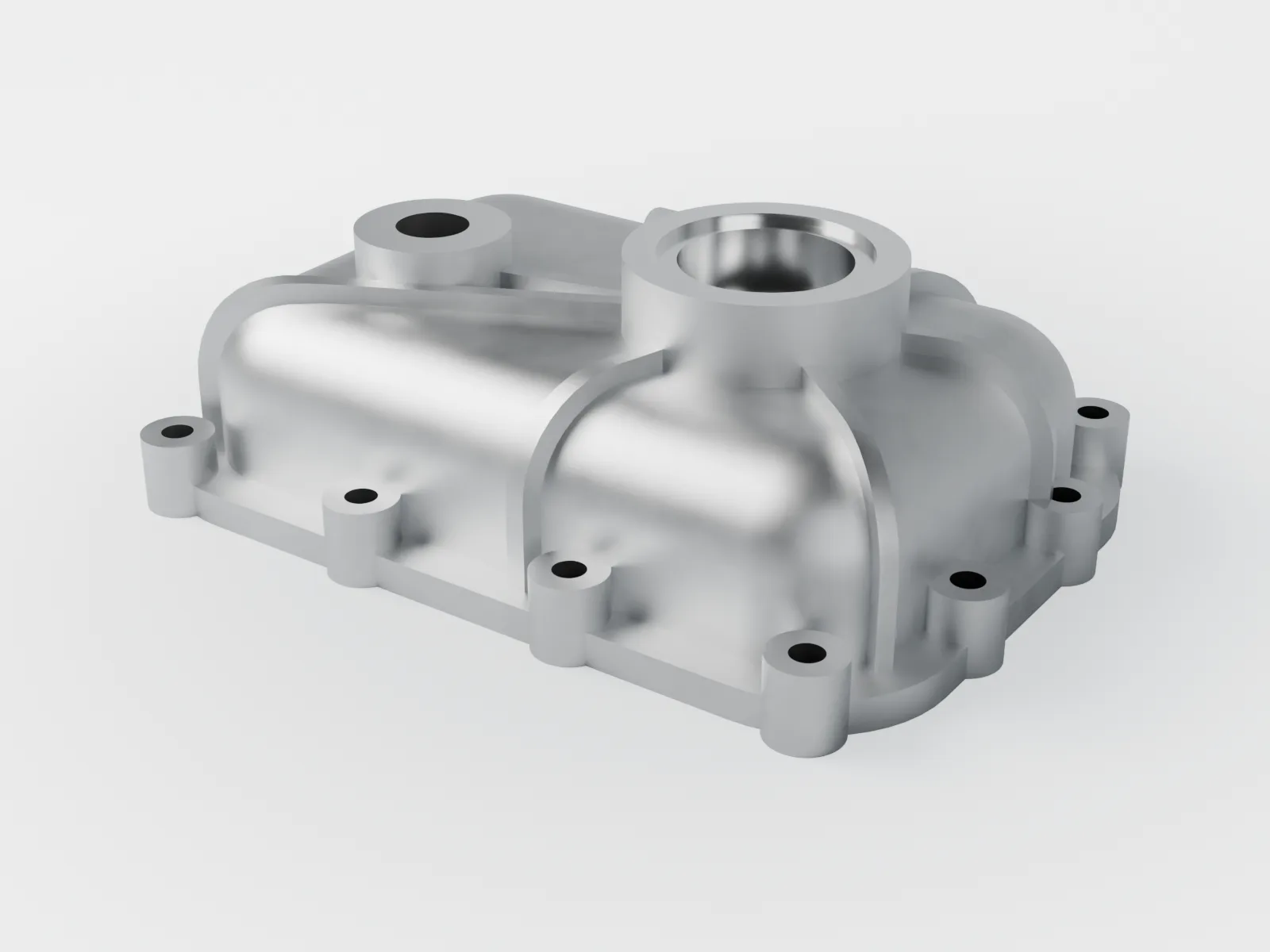

Representative render of this part family. Every part is cast to the customer's own drawing.
| Used in | Passenger car and light commercial vehicle gearboxes |
|---|---|
| Process | High-pressure die-casting |
| Alloys | ADC12, A380, LM24 |
| Part weight | 1.5–5 kg |
| Part size | Up to about 450 × 350 mm |
| Wall thickness | 3–5 mm |
| As-cast tolerance | ±0.1 mm per 100 mm (as-cast) |
| Machines | 650 t |
| Secondary operations | Trimming and deburring, Shot blasting, CNC machining, Leak / pressure testing, Impregnation |
Quality documents with every lot
- CMM report
- Spectro (chemical) report
- First piece approval
- PPAP
Send us your drawing
Share a part drawing or 3D model and we will come back with feasibility and a quote.
